Description
🏷 General Overview
Model Code: KK‑APR66LR — part of the Atlas medium-duty line (“Kei”), also seen in KC/APR66 series
Production Years: Late 1990s to early 2000s (circa 1999–2002) .
Configuration: Cab-over diesel cargo truck with manual transmission, standard single-row cabin seating up to 3.
🔧 Powertrain & Performance
Engine: Isuzu-sourced 4HF1 inline‑4 diesel
Displacement: 4,330 cc (commonly rounded to 4.3 L)
Power output: 123 hp (~90 kW) @ 3,100 rpm
Torque: ~294 Nm @ 1,500 rpm
Transmission: Typically 5‑ or 6‑speed manual (depending on sub-model)
Layout: Rear-wheel drive (FR), robust torque delivery suitable for heavy cargo .
📏 Dimensions & Loading Capacity
Overall Size:
Length: ~6,080 mm
Width: ~2,020 mm
Height: ~2,255 mm .
Cargo Bed:
Approx. 4,355 × 1,910 × 380 mm
Payload capacity: ~2,000 kg
Weights:
Curb: ~2,730 kg
Gross vehicle weight: ~4,895 kg Wheelbase: ~3,365 mm, with turning radius ~5.8 m
Tires: 205/75R16 preferred for adequate load support
🛞 Chassis, Suspension & Brakes
Suspension:
Front: beam/spring-type (solid axle)
Rear: leaf springs for load stability .
Brakes: Ventilated front discs, rear drum brakes .

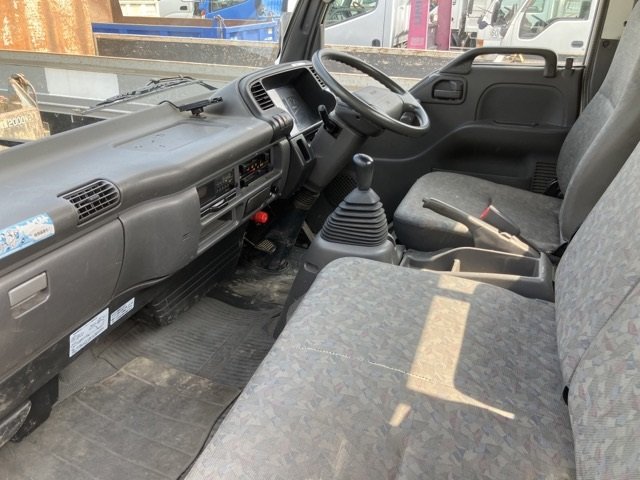

🚗 Cabin & Equipment
Seats: Basic single-row for 2–3 occupants.
Controls:
Manual windows, power steering in many examples
Air conditioning optional, typically basic.
Braking System: Air-assisted brakes.
Variants: DX/STD/Power Gate configurations include varying optional equipment like ABS, airbags, power windows, deck-mounted gates
🔍 Reliability & Recalls
Recalls affecting early models included exhaust pipe reinforcement and improvements to hill‑start assist valve seals to prevent corrosion/inlet water issues .
Rugged, utilitarian build, known for durability under heavy use. Rust and wear on flex joints/brakes are common service concerns on high-mileage units.
📋 Summary Table
| Spec | Value |
|---|---|
| Model Code | KK‑APR66LR |
| Engine | 4HF1 4.33 L I4 diesel (123 hp, 294 Nm) |
| Transmission | 5‑ or 6‑speed manual |
| Drive | RWD (rear-wheel drive) |
| Dimensions (L×W×H) | ~6,080×2,020×2,255 mm |
| Wheelbase | 3,365 mm |
| Load Capacity | ~2,000 kg |
| Curb / GVW | ~2,730 kg / ~4,895 kg |
| Suspension | Solid beam front; leaf rear |
| Brakes | Front discs; rear drums (air assist) |
✅ Final Thoughts
The Atlas KK‑APR66LR is a reliable medium-duty truck ideal for heavy payloads and daily logistics. Powered by the proven 4HF1 diesel, it offers strong torque and robust build quality. With straightforward mechanics, basic features, and easy servicing, it’s a practical workhorse — perfect for fleets, construction, or farm use.
