Description

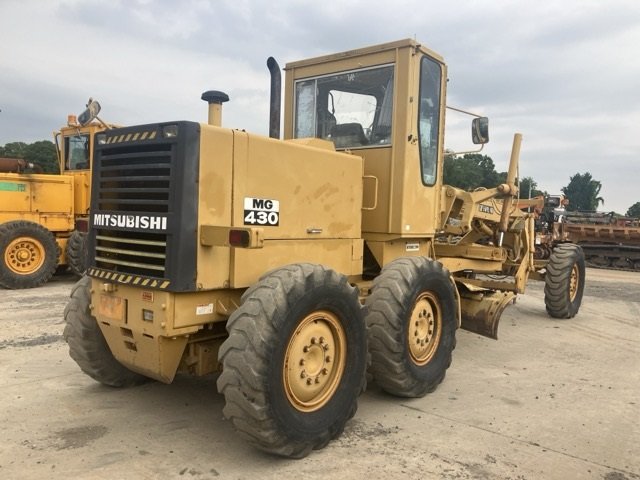

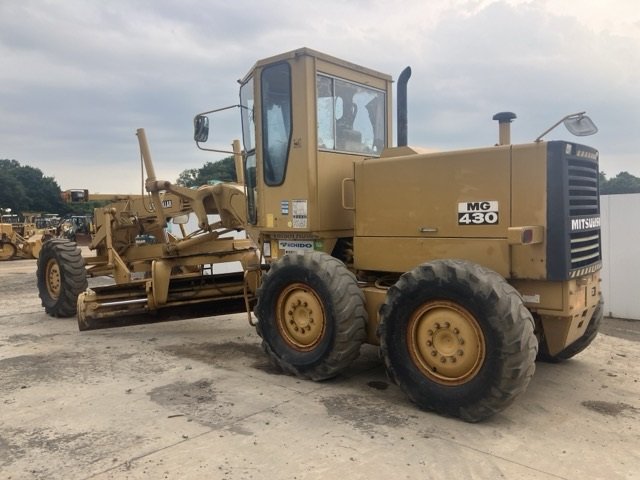

Mitsubishi MG430 motor grader (circa mid‑1990s, including 1994 models):
📐 Dimensions & Weight
Overall length: ~8,475 mm (27.8 ft)
Width (over tires): ~2,420 mm (7.94 ft)
Wheelbase: ~6,250 mm (20.5 ft)
Height to top of cab: ~3,070 mm (10.1 ft)
Operating weight: ~12,190 kg (26,874 lb)
🔧 Engine & Drivetrain

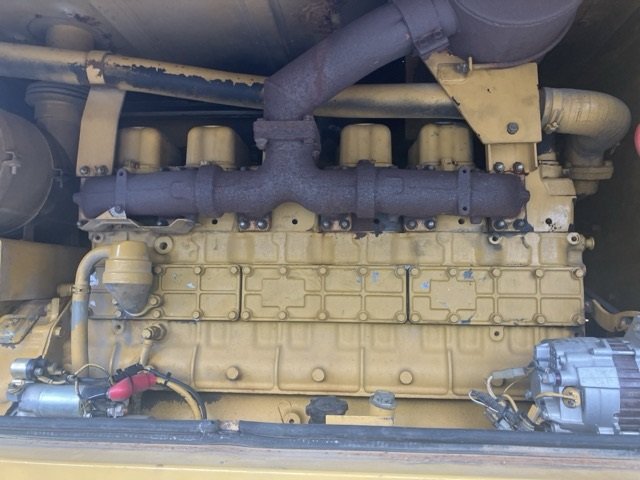

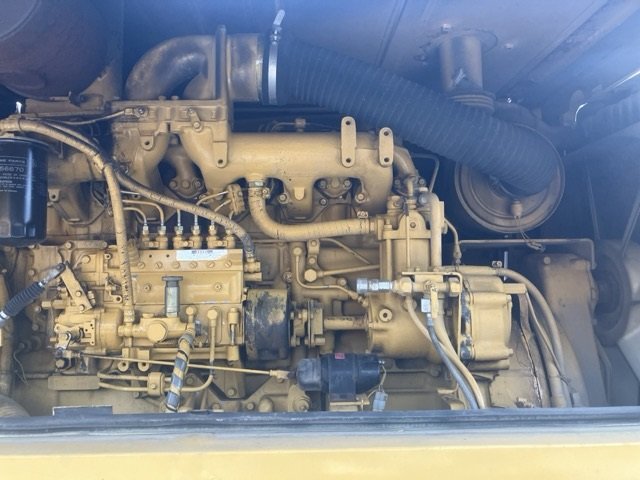

Engine model: Mitsubishi C 6D16‑T inline‑6 diesel, ~7.6 L displacement
Rated power: ~155 hp (116 kW) @ 2,000 rpm
Transmission: Fully power‑shift planetary transmission with 6 forward and 6 reverse gears
Lift speed: Up to ~45 km/h (28 mph) for both forward and reverse
🎯 Steering & Blade
Turning radius: ~6.9 m (22.7 ft)
Blade (moldboard):
Width: ~3,710 mm (12.2 ft)
Height: ~610 mm (24 in), thickness ~19–22 mm
Circle features (E versions): 360° rotation, ~1.98–2.00 m lateral shift, front/rear tip ±40°/8°, lift height ~490 mm
⚙️ Undercarriage & Hydraulics
Tire size (standard): 13.00‑24‑10PR; E-series may use 14.00‑24‑12PR
Hydraulic system capacity (E-series): ~67 L (17.7 gal) fluid
Operating voltage: 24 V electrical
✅ Summary Overview
The Mitsubishi MG430 is a mid‑size, heavy-duty grader with robust planetary transmission and strong hydraulic steering. Ideal for road maintenance, grading, leveling, and snow removal, it offers:
A 155 hp diesel engine with six-speed power-shift
A 3.7 m blade with full articulation and blade-tip flexibility
Articulated steering, solid cab height, and stable undercarriage
Operating weight (~12 t) suitable for medium–large scale projects
Variants like the MG430‑E add enhanced circle hydraulics and larger blade options.
ℹ️ 1994‑Specific Notes
Models sold in 1994 (like your NG430, also referenced as MG430 or 4GA-series) often include:
Cabin with basic climate control (heater, optional AC)
Ripper attachment available, spare wheel bracket often fitted
Typical blade width: ~3.7 m
Engine variant: possibly Mitsubishi 6D22 (11.1 L, ~157 hp)
